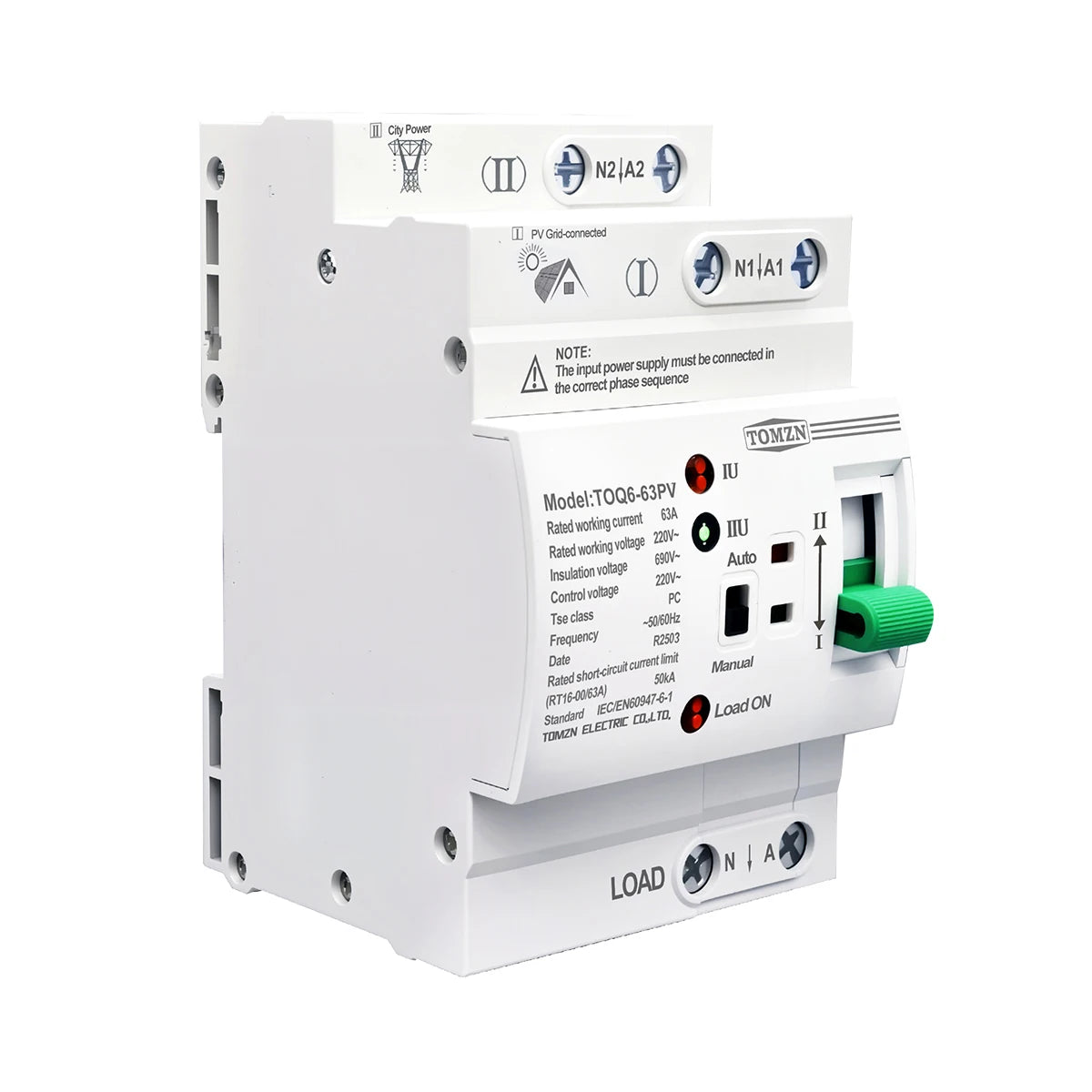

TOMZN Din Rail Small Size PV ATS 2P4P 63A 230V Dual Power Automatic Transfer Electrical Selector Switch Uninterrupted
TOMZN Din Rail Small Size PV ATS 2P4P 63A 230V Dual Power Automatic Transfer Electrical Selector Switch Uninterrupted
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: TOMZN
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: None
Is Smart Device: no
Model Number: TOQ6-63
Origin: Mainland China
Type: Mini
is_customized: Yes
TOQ6-63/2P PV,TOQ6-63/4P PV
Small dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for PV system and Inverter.
TOQ6-63/2P,TOQ6-63/4P
Dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for city power and Generator, not for PV system and Inverter.
1.Case grade:80
2.Rated insulation voltage Ui:690V
3.Rated impulse withstand voltage:8kV
4.PC class:can be switched on an loaded without generating short-circuit current
5.Rated short-circuit current Iq:50kA
6.Short circuit protection device (fuse):RT 16-00-63A
7.Rated control voltage Us:AC220V 50Hz
8.Normal working conditions: 85%Us-110%Us
9.Auxiliary circuit:AC220V 50Hz le=5A
10.Contactor change-over time:<50ms
11.Operation change-over time:<50ms
12.Return change-over time:<50ms
13.Power off time:<50ms
14.Mechanical life:≥5000 Times
15.Electrical life:≥1500 Times
16.Usage category:AC-31B
Noted: the product works with L+N 220-240V 50-60Hz
