SPECIFICATIONS

Application: heating

Brand Name: MINCO HEAT

Certification: CE

Choice: yes

Conductor Material: Copper

Conductor Type: Solid

High-concerned chemical: None

Insulation Material: Rubber

Model Number: DDYR

Origin: Mainland China

Structure: Without modular telephone connectors

Type: Insulated

Use: Not Telecommunication

Voltage: ≤80V

is_customized: Yes

Description:

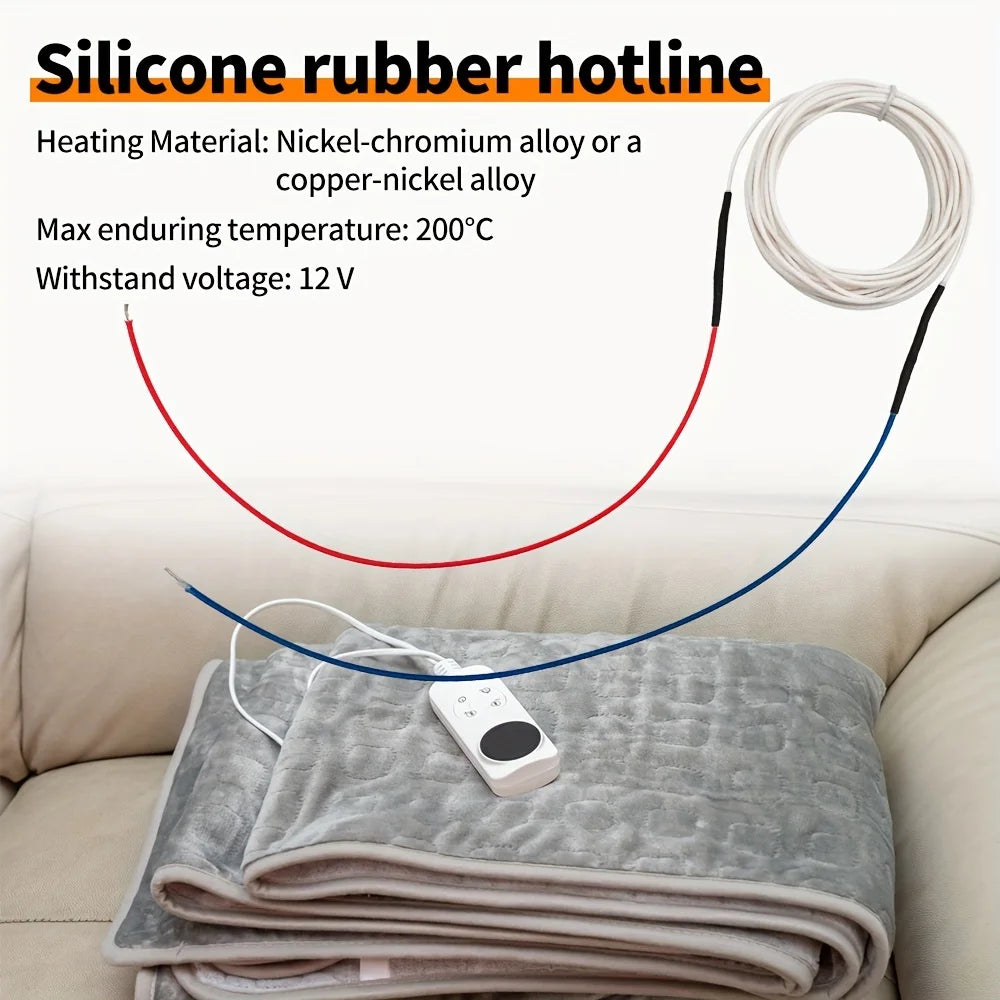

Product Name: silicone rubber hotline

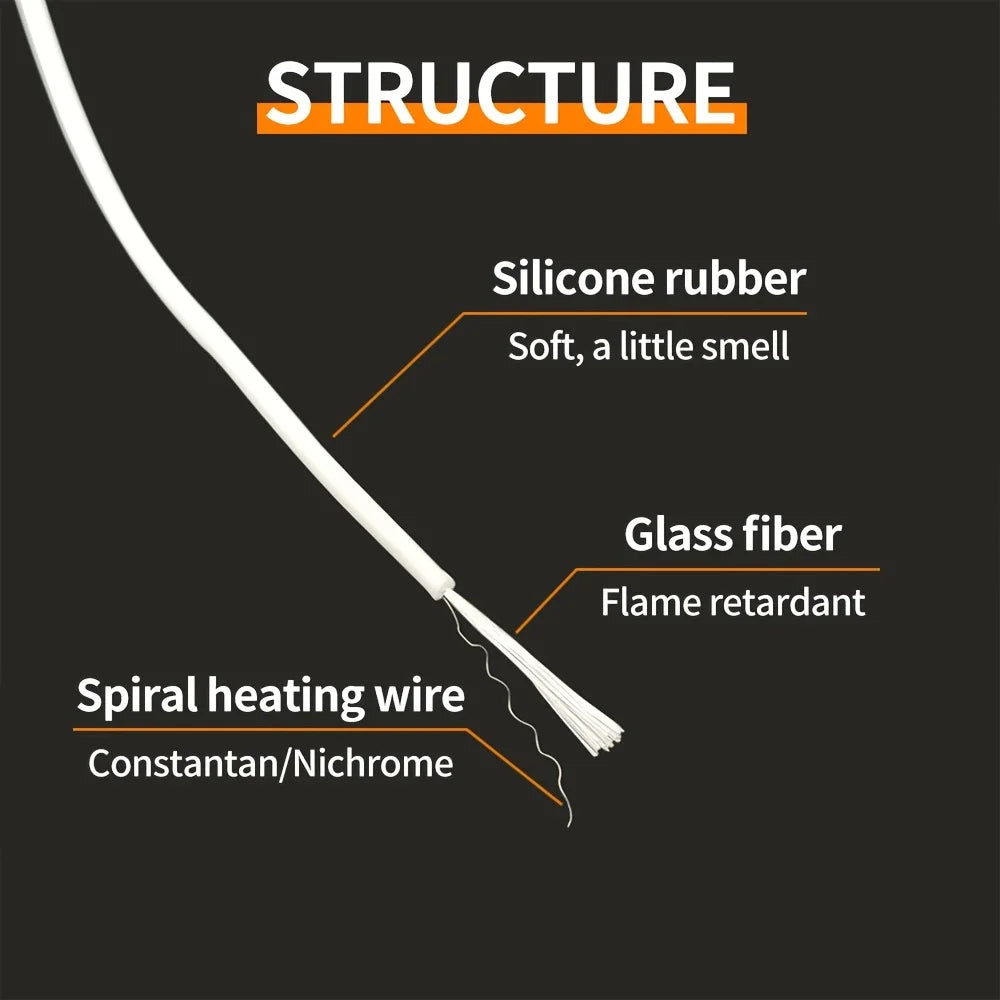

Heating Material: Nickel-chromium alloy or a copper-nickel alloy

Power frequency withstand voltage: 2000 V

Insulation resistance: ≥100MΩ

Max enduring temperature: 200C

Withstand voltage: 300 V

Diameter: 2 mm

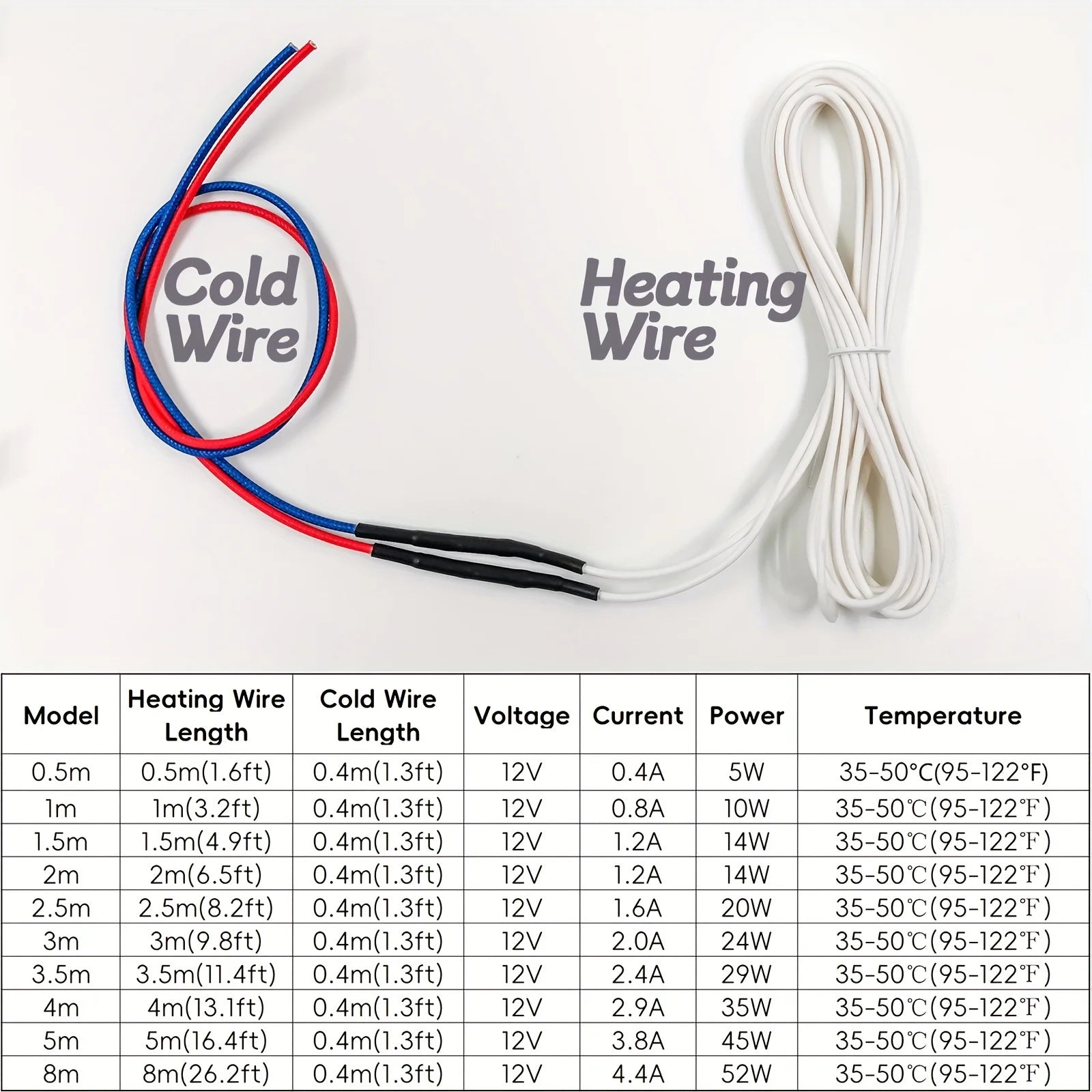

Cold wire length: 0.4m

Product life: more than 30000 hours

Notice:

1. Do not use more than 20W/m, or it may burn down the heating wire.

2. Do not overlap.

3. The temperature will be low if use the USB 5V power, because the current of USB 5v is not enough.

Applications: The cable is suitable for making electric blankets, cushions, pet mats, jade mattress, electric belts, electric warm clothing, electric shoes, electric massage chairs, refrigerators, air conditioners, freezers defrost, rice cooker insulation, pool bath, heated towel rail, pipeline tank antifreeze, window heating, equipment, and other medical and cosmetic lines for internal use.
