✨HavenWick✨

ESP32-S3 Module 4 Inch IPS Touch Screen WiFi Bluetooth With 3 Relay Output Electronic Component For DIY Project LVGL Support

$85.48 USD

Sale Sold out

Shipping calculated at checkout.

Color 3 way relay

Ships From China Mainland

SPECIFICATIONS

Accessory Type: LCD Screen

Battery Included: no

Brand Name: PHONEPACE

Choice: yes

Compatible With: ESP32-S3,for Arduino,LVGL

High-concerned chemical: None

Origin: Mainland China

Typical Application Fields: Education and Learning

Product Introduction

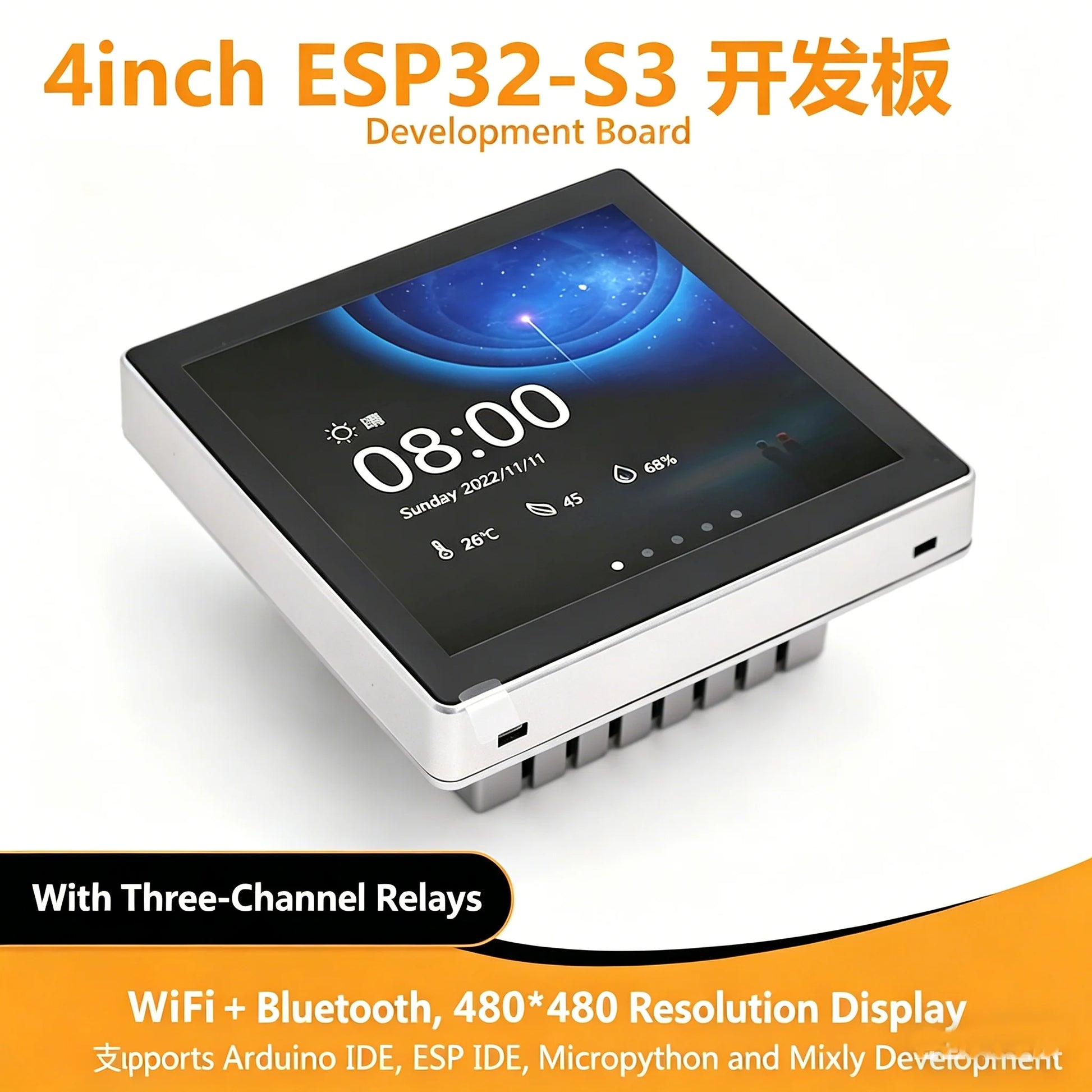

This LCD module adopts the ESP32-S3-WROOM-1 module as the main controller.

It is a dual-core MCU integrated with Wi-Fi and Bluetooth functions, with a main frequency up to 240MHz.

It is equipped with 512KB SRAM, 384KB ROM, 8M PSRAM and 16MB Flash memory.

The display resolution is 480×480 with capacitive touch function.

The module consists of an LCD screen, backlight control circuit and touch screen control circuit.

It reserves a TF card interface and I/O ports, and supports development in Arduino IDE, ESP-IDF, MicroPython and Mixly.

4.0-inch color screen, supports 16-bit RGB 65K color display with rich color performance
Resolution: 480 × 480
Demo programs are pre-flashed at the factory and plug-and-play

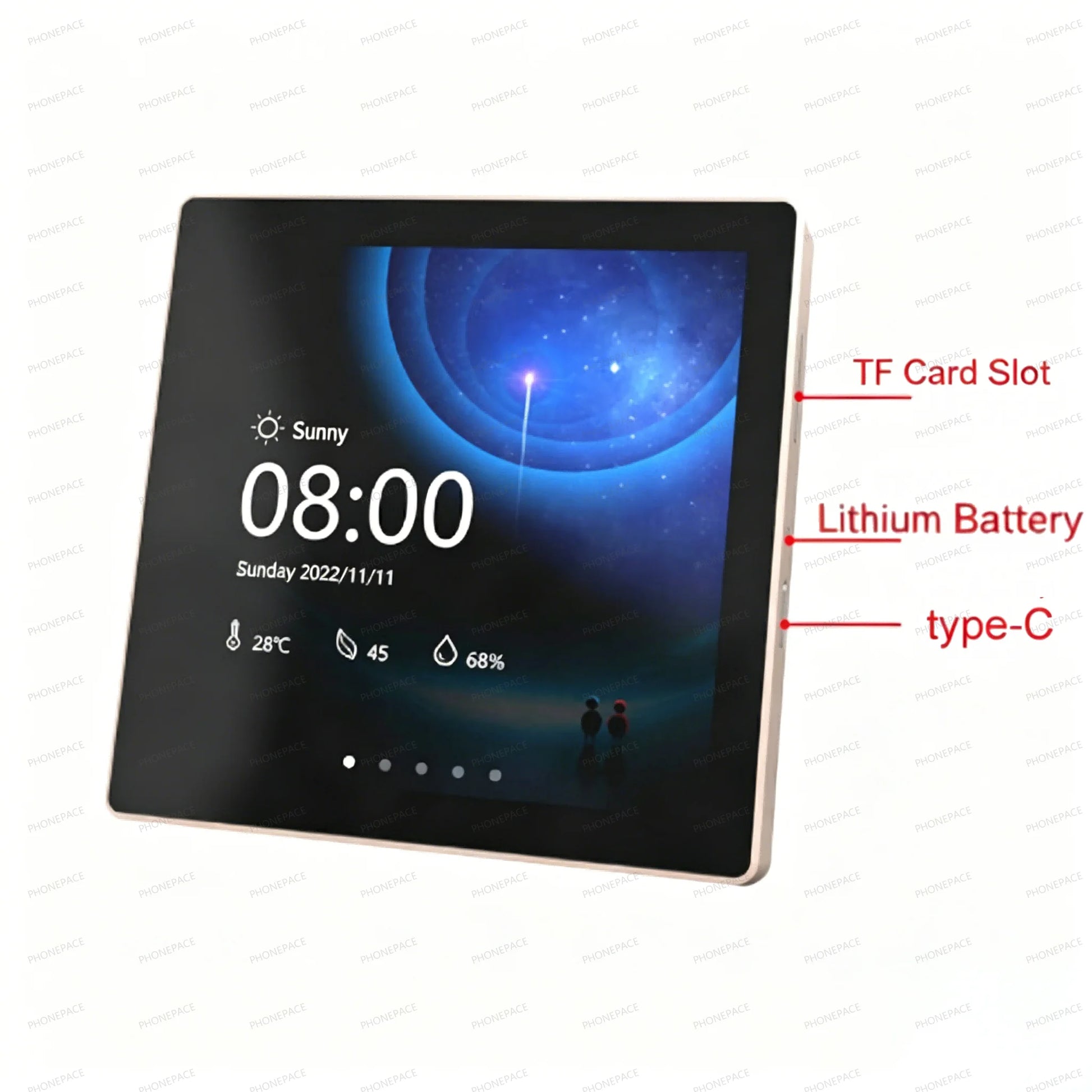

Built-in TF card slot for convenient storage expansion
Provides Arduino library functions and sample programs for rapid secondary development
Supports one-click program downloading
Adopts military-grade craftsmanship standards for long-term stable operation

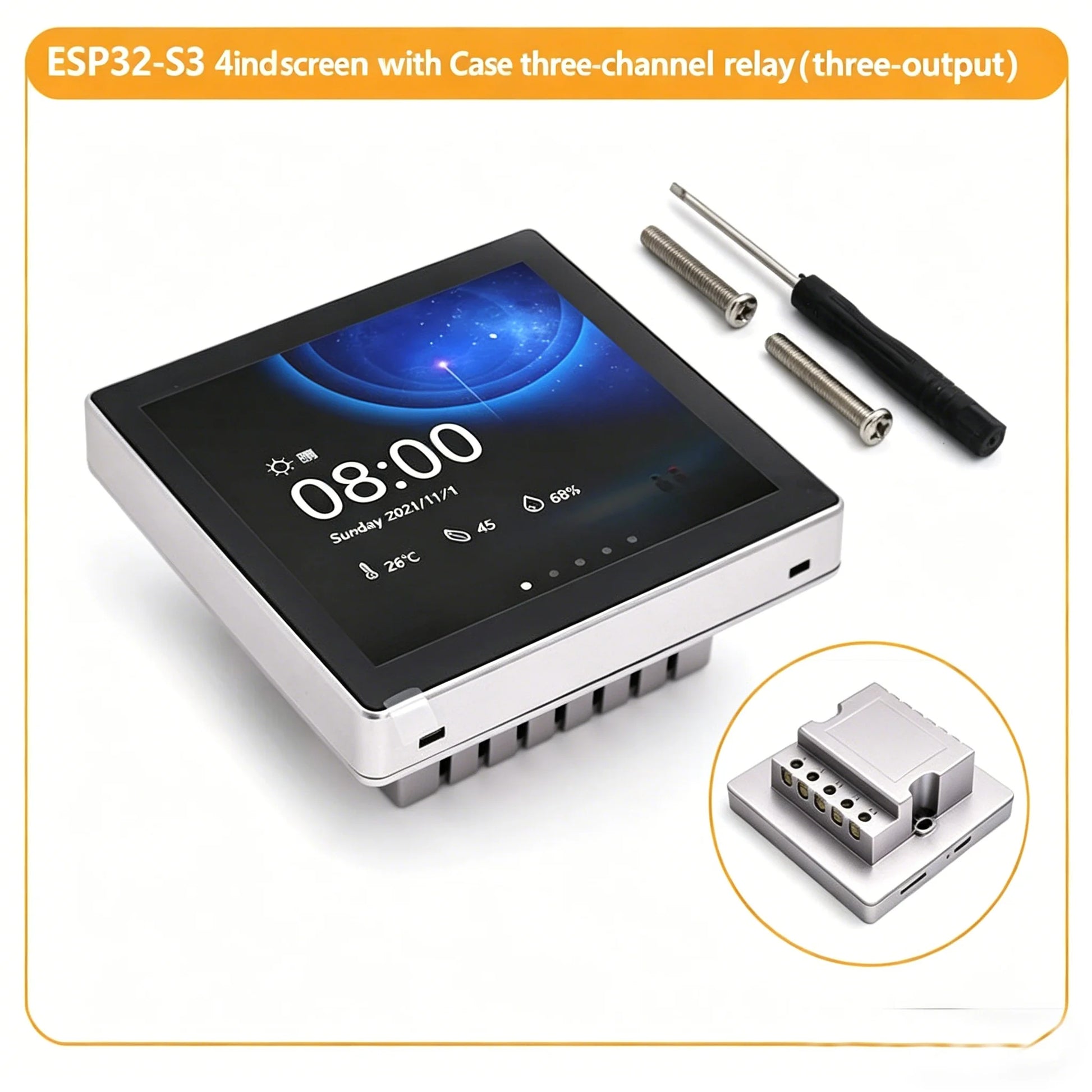

This specification is 3-way relay
